Technology & Function

Ti-Max Z Series

Ti-Max Z Contra-angle

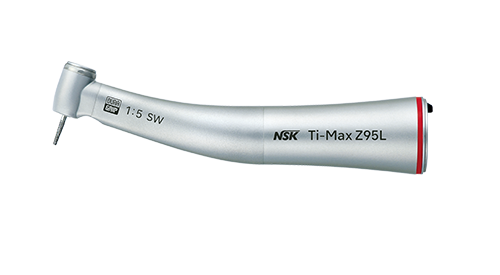

Z95L 1:5

Z95L

  • Optic
  • Model:Z95L
  • Order Code:C1034

Specifications

  • Gear Ratio
  • 1:5 Increasing
  • Coolant Design

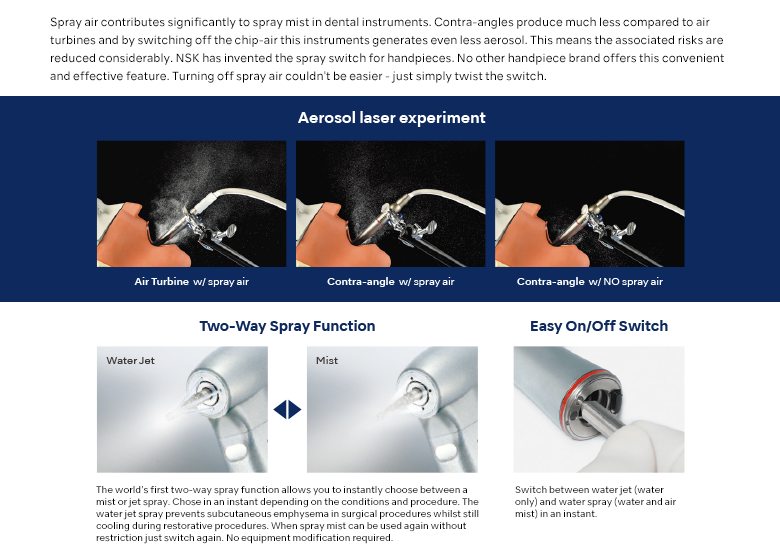

  • Quattro Ports (with two way spray function)
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 200,000 min-1

Features

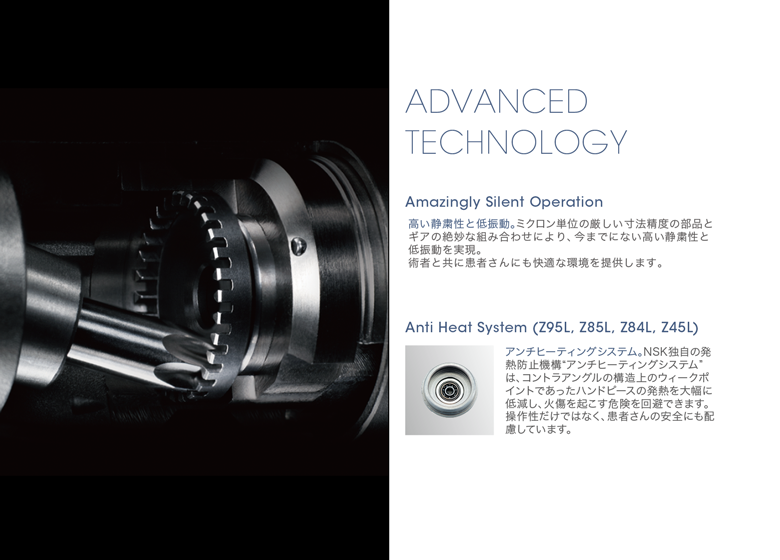

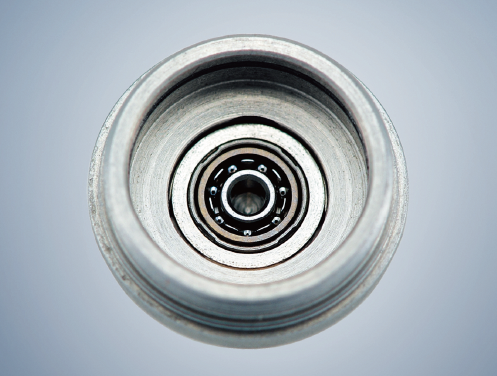

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings

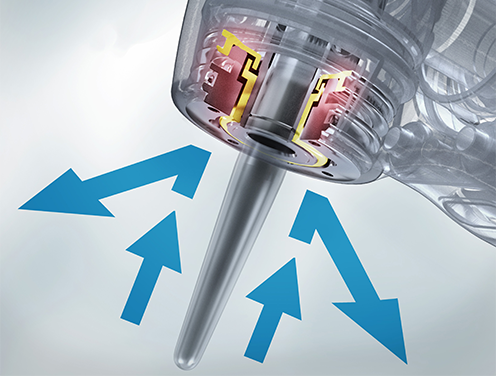

  • Clean Head System
  • Push Button Chuck

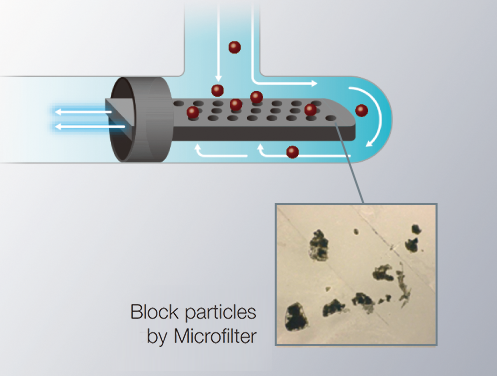

  • Microfilter

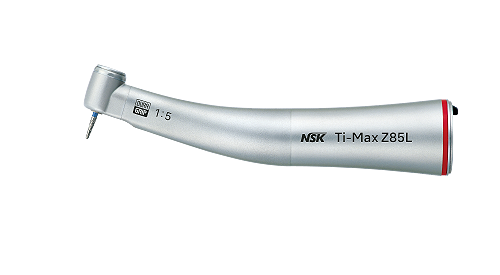

Z85L 1:5

Z85L

  • Optic
  • Model:Z85L
  • Order Code:C1062

Specifications

  • Head
  • Miniature Head
  • Gear Ratio
  • 1:5 Increasing
  • For
  • FG Burs (Ø1.6)

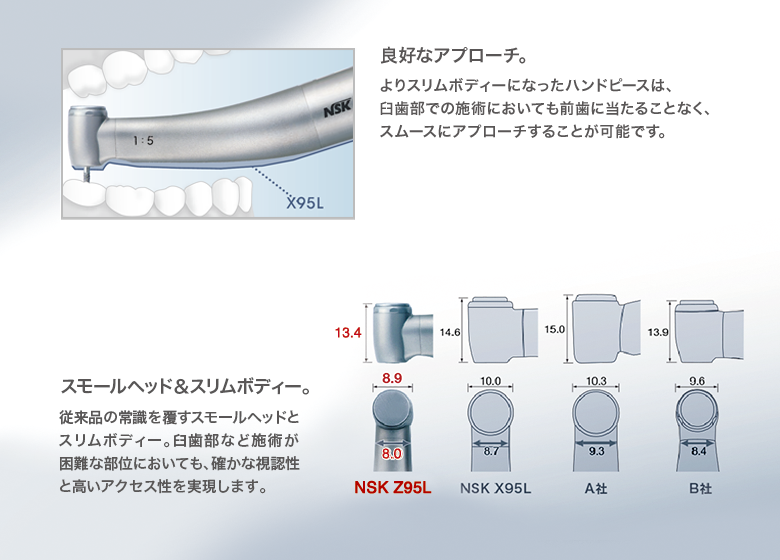

  • Head Size
  • Ø8.9 x H 11.8 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 200,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter
  • Exceptional Durability

Short shank burs only

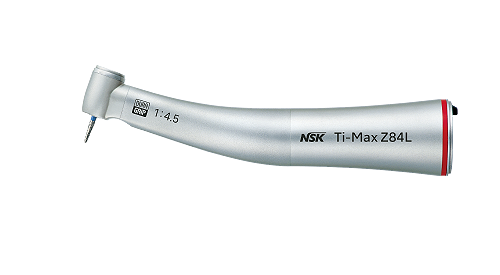

Z84L 1:4.5

Z84L

  • Optic
  • Model:Z84L
  • Order Code:C1135

Specifications

  • Head
  • Miniature Head
  • Gear Ratio
  • 1:4.5 Increasing
  • For
  • FG Burs (Ø1.6)
  • Head Size
  • Ø8.9 x H 12.6 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 180,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter
  • Exceptional Durability

Short shank burs only

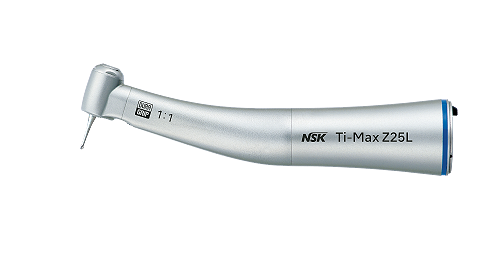

Z25L 1:1

Z25L

  • Optic
  • Model:Z25L
  • Order Code:C1038

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 13.7 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

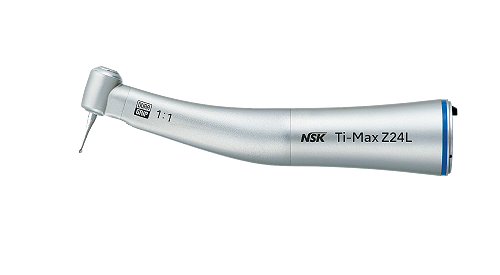

Z24L 1:1

Z24L

  • Optic
  • Model:Z24L
  • Order Code:C1126

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 12.3 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

Features

  • Cellular Glass Optics
  • Push Button Chuck
  • Microfilter

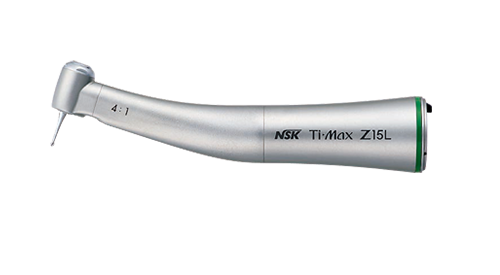

Z15L 4:1

Z15L

  • Optic
  • Model:Z15L
  • Order Code:C1039

Specifications

  • Gear Ratio
  • 4:1 Reduction
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 10,000 min-1

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

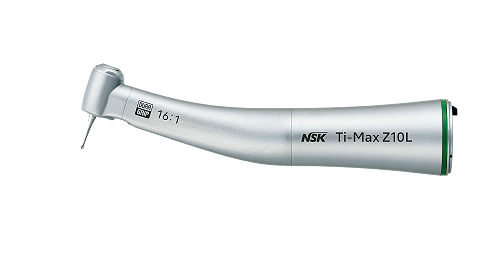

Z10L 16:1

Z10L

  • Optic
  • Model:Z10L
  • Order Code:C1040

Specifications

  • Gear Ratio
  • 16:1 Reduction
  • For
  • CA Burs (Ø2.35)
  • Head Size
  • Ø8.9 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 2,500 min-1

Features

  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter
